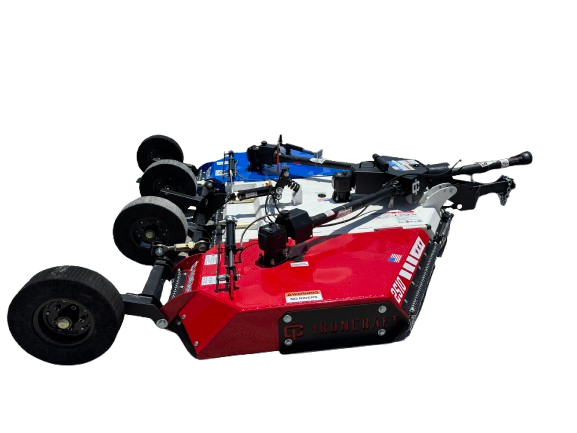

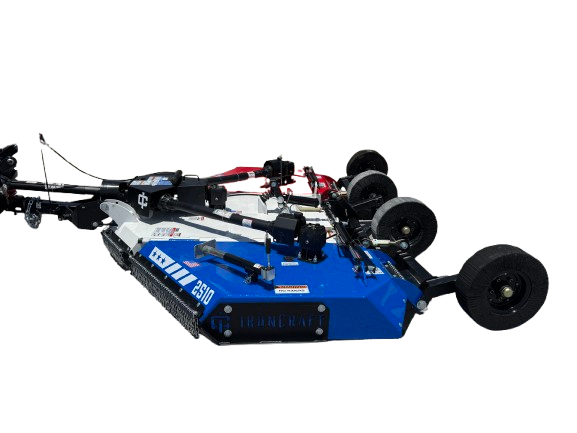

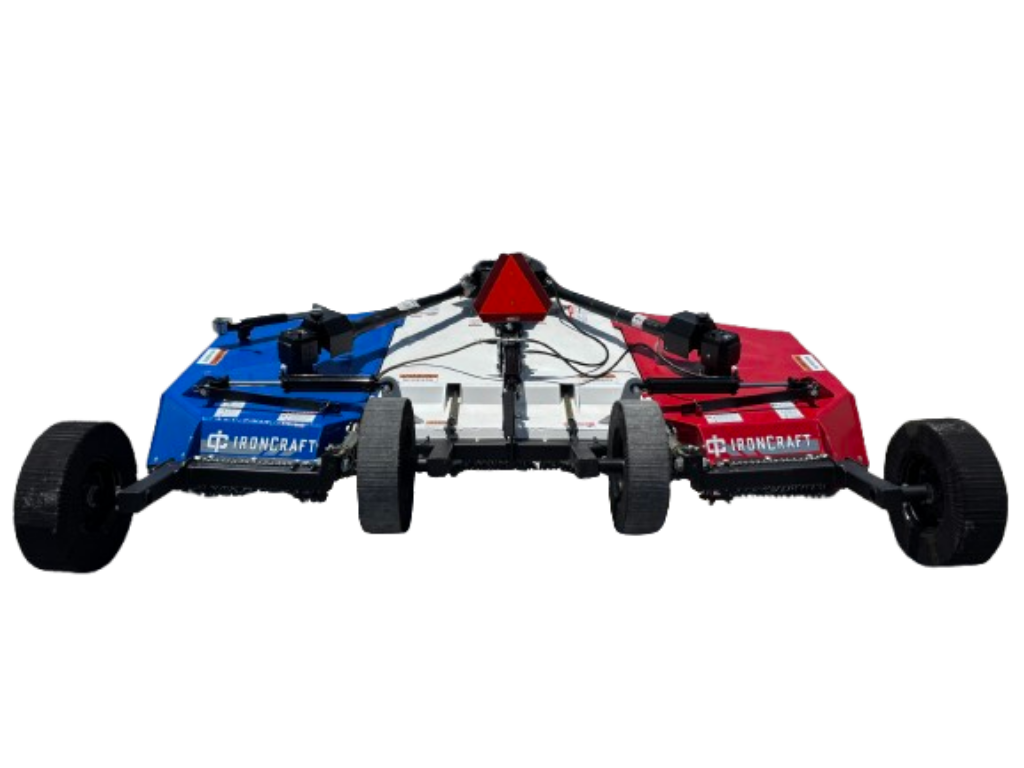

Ironcraft 10′ 2510 Flex Wing Cutter USA #2510-USA
The IronCraft 2510 Cutter is built for powerful performance with minimal horsepower. With a high-speed gearbox, heavy-duty materials, and an easy-to-clean flat top deck, it’s designed to handle tough terrain and keep maintenance simple. Plus, its narrow transport width means you can get wherever the work takes you.
Specifications:
Product Family 2510 Series
Product 2510
Description 10′ Flex-Wing Cutter
RPM 540
HP Required 25 – 60 PTO
Working Width 123″
Overall Width 132″
Transport Width 96.5″
Tongue Weight 830 lbs
Weight (lbs) 2400 lbs with 4-20″ Laminated Tires
Cutting Height 1-3/4″ to 11-1/2″
Cutting Capacity up to 2″
Deck Thickness 11 GA
Deck Height 11″
Side Bands 7 GA
Suspension 1 Medium Duty Spring in Center Tailwheel Assembly
Skid Shoes Replaceable
PTO Drive Shaft ASAE CAT 5
Wing Drive PTO ASAE CAT 4
Driveline Protection Slip Clutch
Blade Holder Round Stump Jumper
Gearbox Rating 175 HP
Outboard Gearbox Rating 75 HP
Wing Flex 20 Degrees Down to 85 Degrees Up
Blades 1/2″ x 3″ Uplift
Blade Overlap 5-1/4″
Wheel Type 20″ Laminated
Hitch Type Swivel Pivot Self Leveling
Gearbox Warranty 5 Year Limited
Safety Tow Chain Standard
Guarding Options Single Row Chains Standard
FPM 14600
