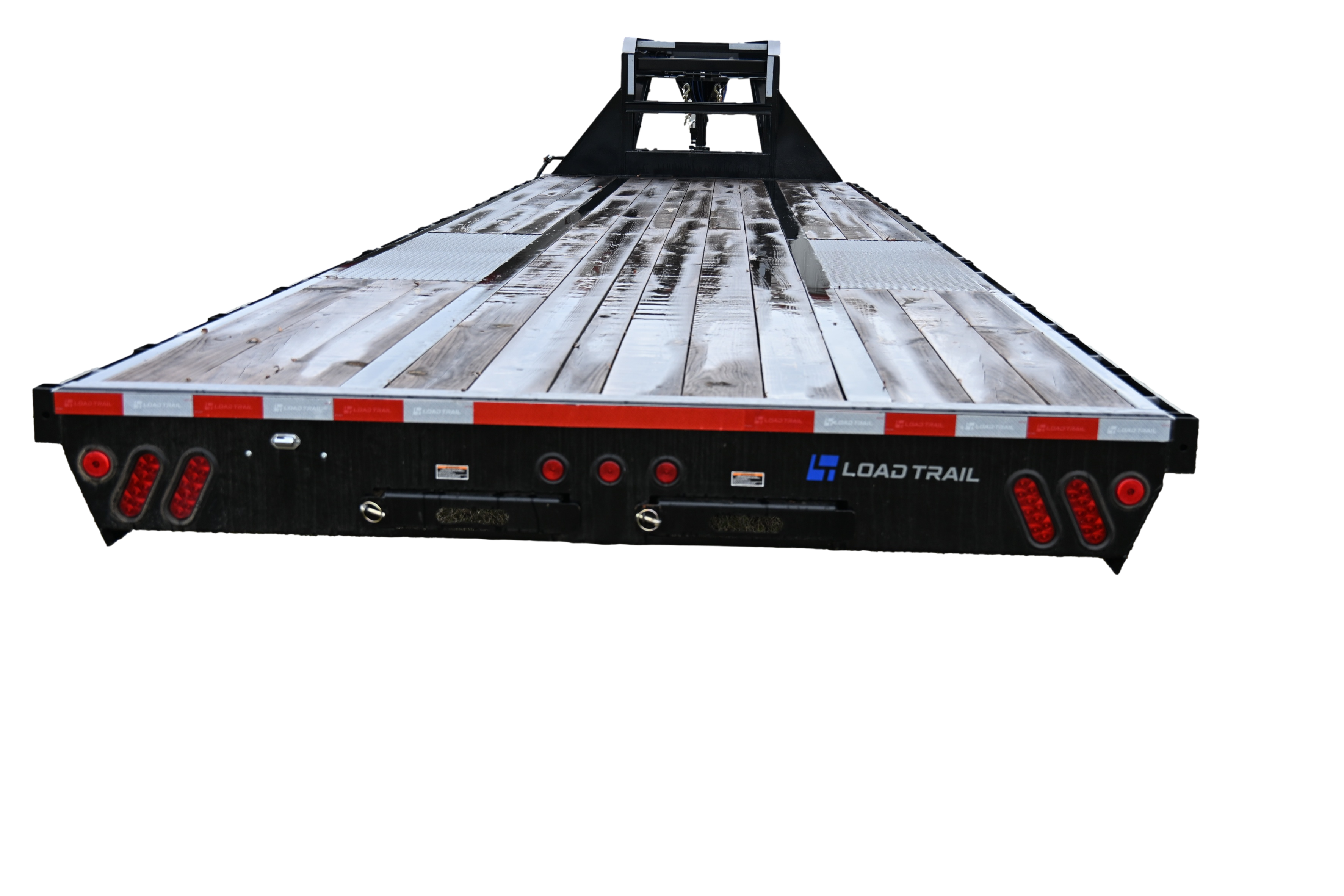

LT316 Load Trail 8X32 Gooseneck Trailer 20K Low-Pro
Our price:
$15,998.00
Specifications
2 – 10000 Lb Dexter Sprg Axles (2 Elec Brakes)(HDSS)
ST235/80 R16 LRE 10 Ply. (BLACK WHEELS)(Dual)
Coupler 2-5/16″ Adj. Rd. 19 lb. (Standard Neck & Coupler)
5′ Self Clean Dove w/Max Ramps
Treated Wood Floor
16″ Cross-Members
Jack Spring Loaded Drop Leg 2-10K
Lights LED (w/Cold Weather Harness)
Mud Flaps
Front Tool Box (Full Width Between Risers)
1 – Set Of Toolbox Brackets
Standard Frame w/out Bridge
Winch Plate (8″ Channel)
2 – MAX-STEPS (15″)
Stud Junction Box
Black (w/Primer)
| MPN |
|---|
| Working width: | 8 feet |
| Overall width: | 8 feet 6 inches |
| Working length: | 32 feet |
| Overall length: | 41 feet 3 inches |
| Deck height: | 2 feet 9 inches |
| 5′ dovetail | yes |
| 10000 lbs spring-assisted dropleg jack | 2 |
| Adjustable gooseneck coupler | yes |
| Axle | 2-Dexter 10000# electric brake: oil bath |
| Breakaway cable | Yes |
| Bump rail | Yes |
| Color | black |
| Ramp options | Spring-assisted level over ramps |
| Crossmembers | 3" channel 16" on center |
| Floor | Pressure treated pine |
| GVWR | 22000 |
| LED lights | Yes |
| Load Capacity | 14140 pounds |
| Lockable toolbox in neck | Yes |
| Lug pattern option | 8on6.5" centers |
| Safety chains | Yes |
| Stake pockets | Yes |
